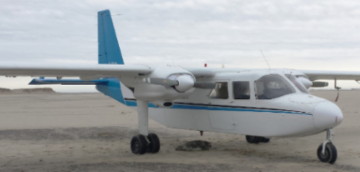

BN-2A Britten Norman Islander

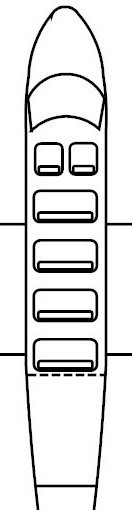

Islander seating chart BN2A Islander
General Specifications
Cruise Speed 120-130 kts (220-240 km/h)
Take-Off Distance < 1000-1400 ft (305-430 m)
Seating up to 7 passengers
(weight permitting)
Allowable Payload (full fuel, single pilot**)
(max combined passenger and baggage/cargo weight)
cargo only 1480 lbs (670 kg)
with seats for 7 passengers 1370 lbs (620 kg)
** 2 pilot option may occasionally be required,
max payload will be reduced
Fuel and Endurance
Max Fuel 1110 lbs (505 kg)
Fuel Burn 190 lbs/hr (32 gal/120 litres/hr)
Full Fuel Endurance approx 5:30

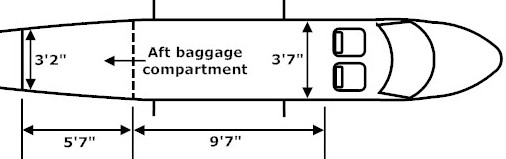

Cargo Configuration - Cabin Dimensions
Islander cargo dimensions

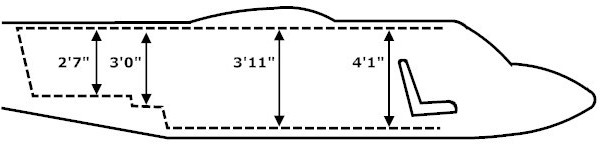

Side View - Cabin Dimensions
Islander side view

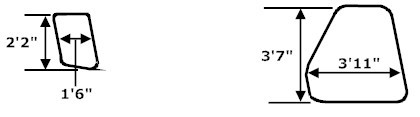

Cargo Doors - Dimensions
(note that effective door dimension is further limited by reduced opening angle)
Islander door dimensions
